Accurate glass engraving begins with preparation before the glass reaches the engraving cabinet.

Linework, spacing and placement are resolved at the artwork stage, then checked again during stencil application to ensure the design will sit correctly on the surface.

Stencil and Alignment

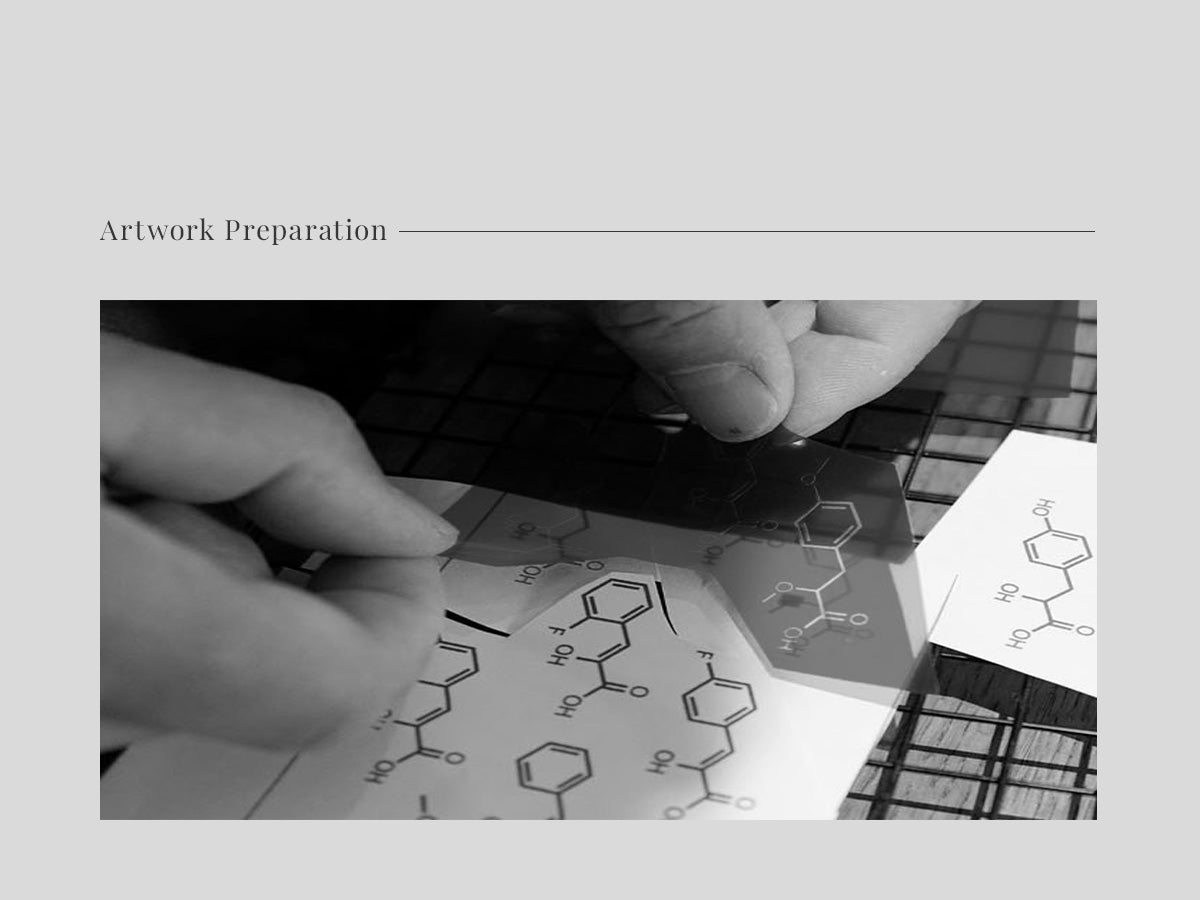

Prepared artwork is printed onto film at the required scale, allowing its position and proportion to be checked against the glass before stencil preparation.

This allows the design to be checked against curvature and proportion before engraving. Scale and placement are adjusted at this stage.

Application

The prepared film is aligned to the glass by hand.

Positioning is set against a reference layout, ensuring that the design sits square and balanced across the surface. On curved forms, small differences in alignment become increasingly visible once the design wraps around the surface.

Complex Layouts

More detailed commissions require additional stages.

In one case, a wraparound whisky glass incorporating multiple molecular structures was prepared through several iterations before the stencil was finalised. The design was adjusted repeatedly to maintain clarity and spacing across the full circumference.

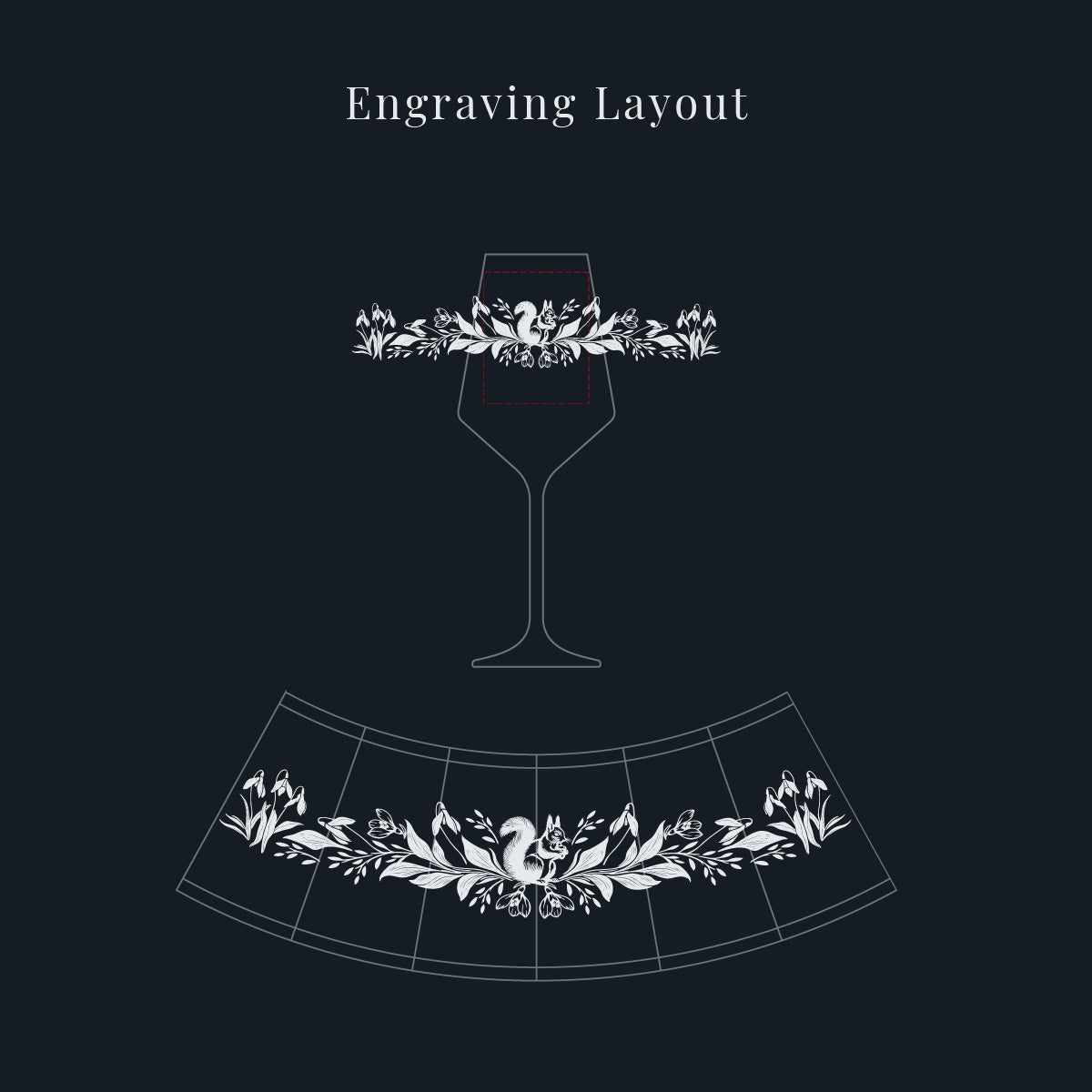

Wraparound and multi-element compositions may require several layout adjustments before the stencil position and spacing are resolved. Layout drawings are used to test spacing, viewing positions and continuity around the glass.

Engraving

Once alignment is confirmed, the stencil is applied and the glass is sandblasted according to the prepared layout.

The engraving follows the prepared layout, producing a consistent etched finish with the design cut into the surface.

Outcome

The finished engraving is often the most visible part of the process, but many of the decisions have already been made long before the glass enters the cabinet.

Scale, spacing, alignment and composition are resolved during preparation, allowing the engraving itself to follow a clearly defined plan.
